Non-asbestos Woven Brake Lining brass wires, viscose fiber, Aramid fiber anchor brake
Ningbo Xinyan Friction Materials Co., Ltd. is a professional manufacturer of non asbestos woven brake lining. Our advantage is that we also produce raw materials of non-asbestos yarns, then weave into brake lining by ourself, so that we have the whole cost and quality control.
Our factory has 6 weaving machines and work with many customers around the world. I will make the quotation list for you after getting your detail size and qty.
Please send us inquiry by email or wechat/whatsapp me at (86) 13771895935 to get more informations.
Quick Detail:Non-asbestos Woven Brake Lining brass wires, viscose fiber, Aramid fiber anchor brake
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
Color: Yellow
Description:Non-asbestos Woven Brake Lining brass wires, viscose fiber, Aramid fiber anchor brake

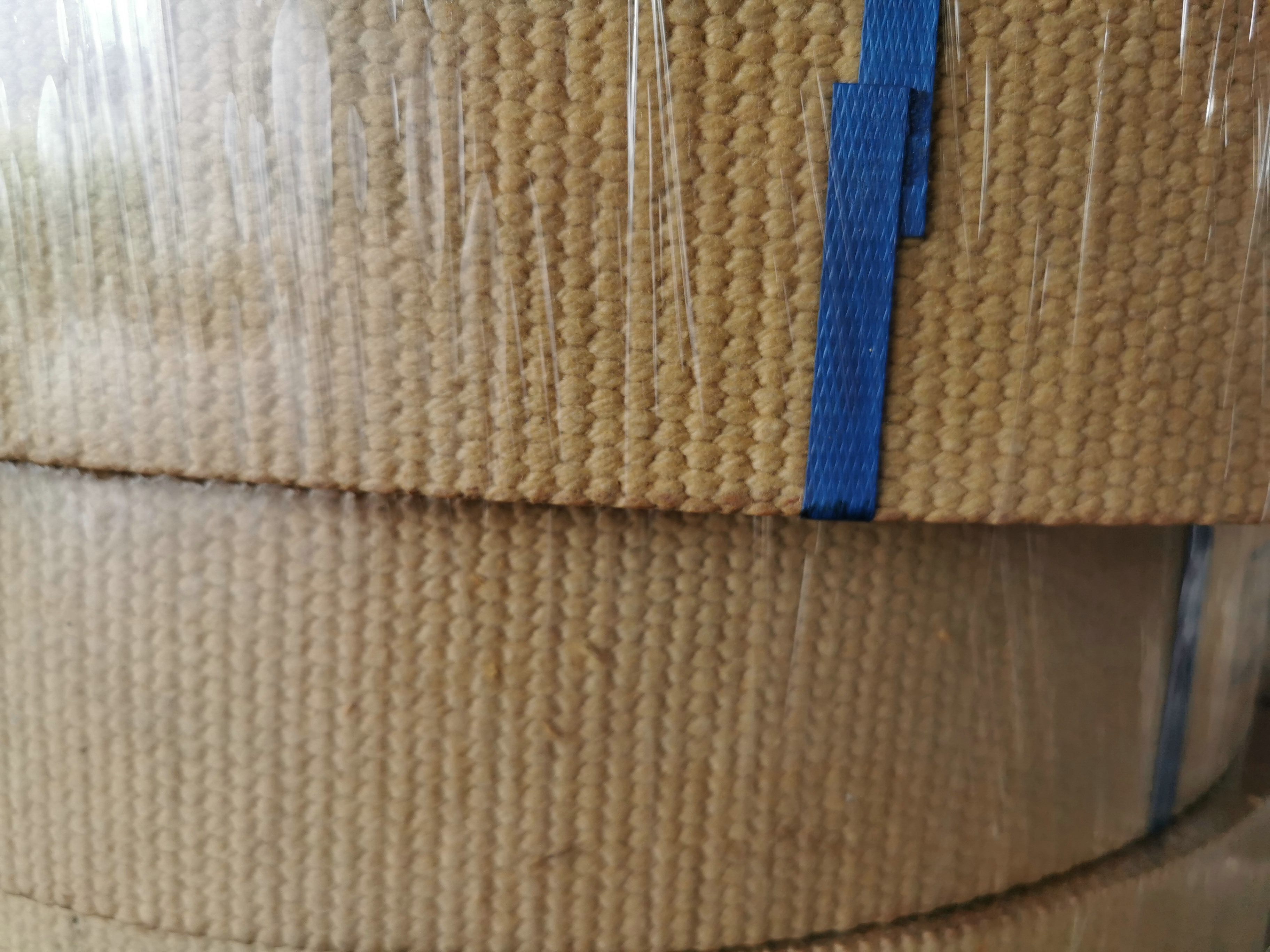

Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.
Specifications:Non-asbestos Woven Brake Lining brass wires, viscose fiber, Aramid fiber anchor brake
| Temperature | Coefficient of friction(μ) | Wear rate(v)(cm³/N.m) |
| 100℃ | 0.35~0.65 | ≤0.7 x 10-7 |
| 150℃ | 0.35~0.65 | ≤1.1 x 10-7 |
| 200℃ | 0.30~0.60 | ≤1.5 x 10-7 |
| 250℃ | 0.25~0.60 | ≤2.5 x 10-7 |
