15m/Roll Non Asbestos Woven Brake Lining With Brass Wire Reinforced Ship Anchor

  • 1
  • 2
  • 3

Brand Name : DALU

Model Number : BXS-M

Certification : GB/T 19001-2016/ISO 9001:2015

Place of Origin : CHINA

MOQ : 0.5 Tons

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20 Tons

Delivery Time : 6 weeks after down payment

Packaging Details : exporting wooden case

Product Name : Non Asbestos Woven Brake Lining Roll With Brass Wire Reinforced Ship Anchor

Product Color : Brown

Application : Anchor Winch Non Asbestos Woven Brake Lining Brass Wire Inforced

Size : 10, 15, 20 meters/roll

Material : brass wire, resin, viscose,

Type : BXS-M

woven : Non Asbestos Woven Brake Lining Roll With Brass Wire Reinforced Ship Anchor

resin : melamine resin

main raw material : non-asbestos yarns

color : yellow

Contact Now

Non Asbestos Woven Brake Lining Roll With Brass Wire Reinforced Ship Anchor



Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.



We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.



Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.

15m/Roll Non Asbestos Woven Brake Lining With Brass Wire Reinforced Ship Anchor15m/Roll Non Asbestos Woven Brake Lining With Brass Wire Reinforced Ship Anchor



Quick Detail:Non Asbestos Woven Brake Lining Roll With Brass Wire Reinforced Ship Anchor


Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m


Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7





Description:Non Asbestos Woven Brake Lining Roll With Brass Wire Reinforced Ship Anchor
Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.


15m/Roll Non Asbestos Woven Brake Lining With Brass Wire Reinforced Ship Anchor



Non Asbestos Woven Brake Lining Roll With Brass Wire Reinforced Ship Anchor



Competitive Advantage:Brass Wire Reinforced Asbestos Free Brake Lining Woven Lining Rolls Wire Inside Product

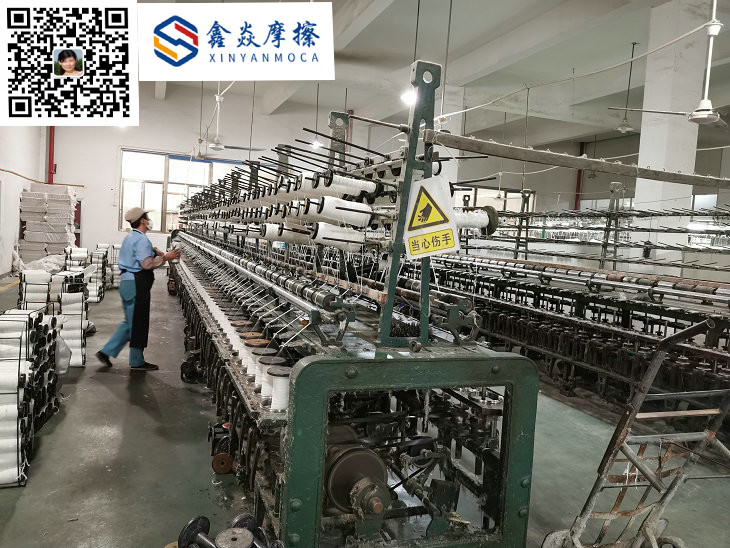

Our factory could produce the raw materials for brake lining. We have yarn machines, we produce yarns and then weeve yarns into brake lining rolls by ourself, so that we could control the whole quanlity and cost very well.



Our factory has 6 weaving machines and work with many customers around the world. I will make the quotation list for you after getting your detail size and qty.



Please send us inquiry by email or wechat/whatsapp me at (86) 13771895935 to get more informations
